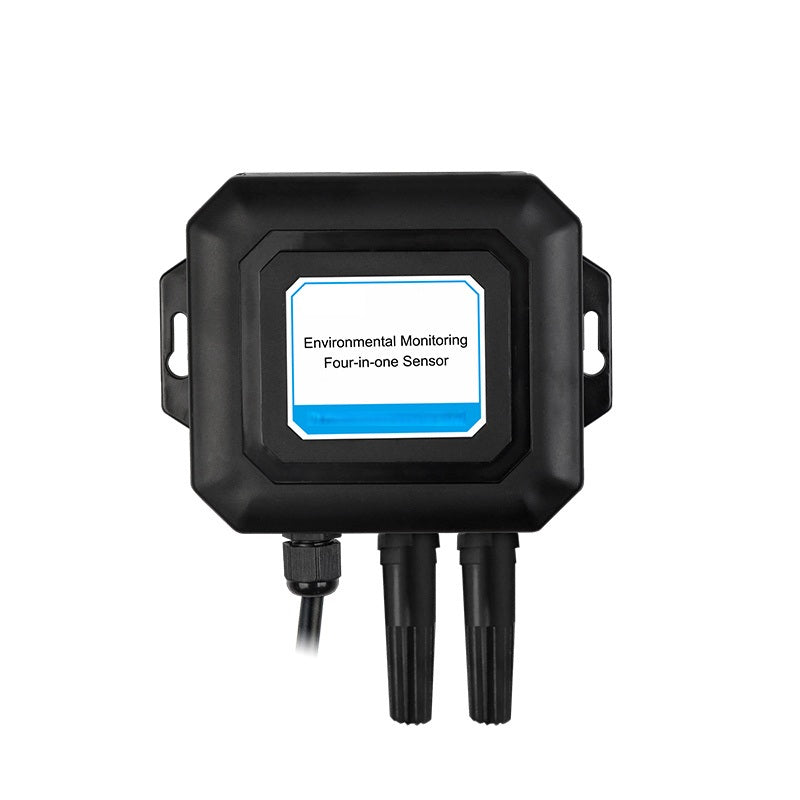

IQAQ-4M Environmental Monitoring Four-in-one Air Quality Sensor RS485
![IQAQ-4M Environmental Monitoring Four-in-one Air Quality Sensor RS485]()
![IQAQ-4M Environmental Monitoring Four-in-one Air Quality Sensor RS485]()
IQAQ-4M Environmental Monitoring Four-in-one Air Quality Sensor RS485
Available:Accepting Orders
Wishlist
- Product SKU: IQAQ-4M
- Category:IQFlow Sensors & Actuators
$299.00
IQAQ-4M Environmental Monitoring Four-in-one Air Quality Sensor RS485
The IQAQ-4M Environmental Monitoring Air Quality Sensor is a special sensor designed for environmental monitoring. The built-in core sensors are all imported components. The sensor can continuously monitor the four types of PM2.5/PM10 air quality concentration, atmospheric pressure and ambient temperature and humidity. Each parameter value is converted into MODBUS-RTU standard electrical signals and transmitted to related equipment.
Features:
● Exquisite structure, easy installation
● Four detection devices in one for continuous monitoring
● Built-in high-performance microprocessor
● High sensitivity, easy installation
● Superior performance, good long-term stability
Applications:
● Breeding, greenhouses
● Climate and HVAC signal acquisition
● Scientific experiments, pharmaceutical and chemical industries, etc.
Technical Specs:
| Temperature and humidity | Atmospheric pressure | PM2.5/PM10 | |
| Measuring range |
Temperature: -40~80℃ Humidity: 0%RH~100%RH |
30~120Kpa |
0~500ug/m3 0~1000ug/m3 |
| Signal output | RS485 output | RS485 output | RS485 output |
| Operating voltage | 10~30VDC | 10~30VDC | 10~30VDC |
| Precision |
Temperature: ±0.5℃(25℃) Humidity: ±3%RH (5%RH~95%RH, 25℃) |
±0.15Kpa(25℃) | ±10% |
| Long-term stability |
Temperature: ≤0.1℃/year Humidity: ≤0.1%RH/year |
Air pressure: ±0.1kPa/year Temperature: ≤0.1℃ /year |
/ |
| Response time |
Temperature: ≤18/s (1m/s wind speed) Humidity: ≤6 seconds (1m/s wind speed) |
≤1 second | ≤90/second |
| Operating temperature | -20~60℃, 0%RH~80%RH | / | / |
