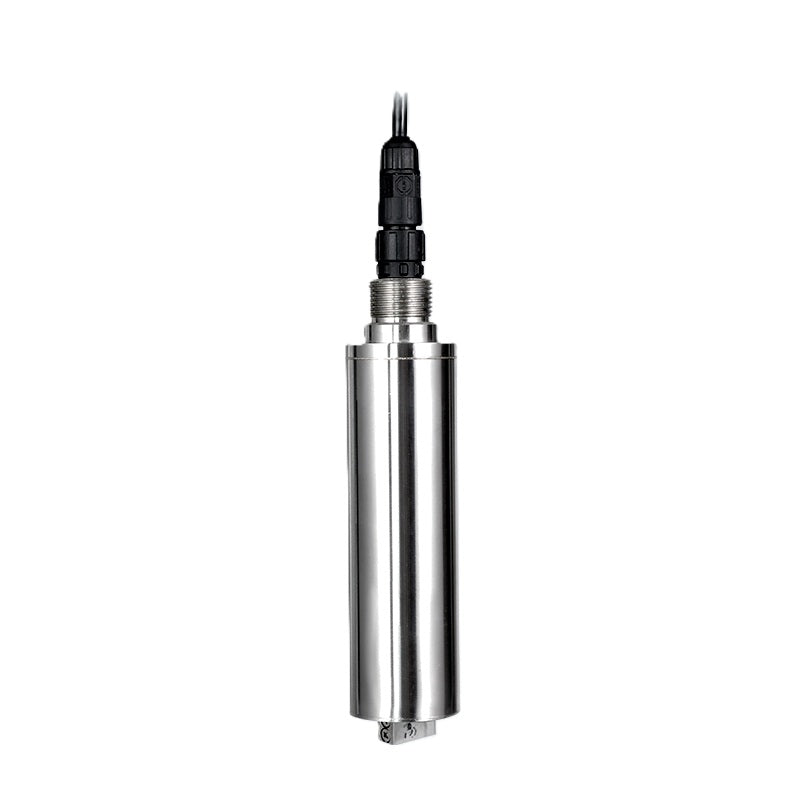

IQTB-NTU Smart Turbidity Sensor Modbus RS485, 5m cable
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
IQFLOW

IQTB-NTU Smart Turbidity Sensor Modbus RS485, 5m cable

Available:Accepting Orders
Wishlist
$1,200.00

IQTB-NTU Smart Turbidity Sensor 4-20mA and Modbus RS485, 5m cable

The IQTB-NTU Smart Turbidity Sensor is designed for precision in various industries including metallurgy power pharmaceuticals chemical petroleum and water quality treatment. It features a measurement range of 0 - 1000 NTU with high accuracy and resolution. Constructed with 316 stainless steel it operates under a wide temperature range and offers reliable data communication via 4-20mA or RS485 (MODBUS-RTU). Its robust design ensures durability and consistent performance in demanding environments.

Application scope:

  • Metallurgy, power, pharmaceutical, chemical, petroleum;
  • Water quality treatment, food and other industries.

Technical Parameters:

  Turbidity measurement range   0 - 1000NTU
  Resolution   0.01%
  Measurement accuracy   ±1.0%FS

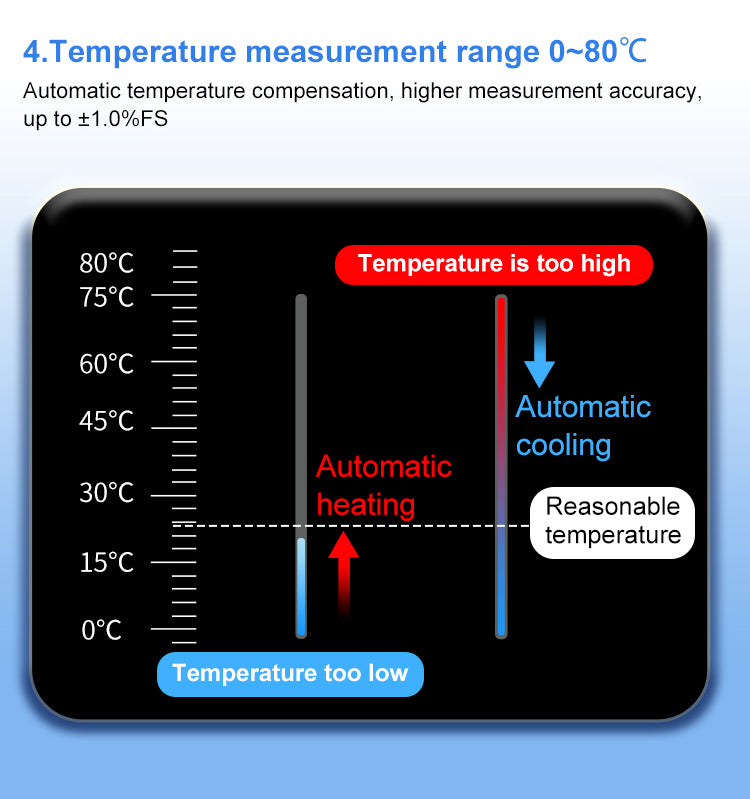

  Temperature measurement range   0...80℃
  Resolution   0.1℃
  Temperature measurement accuracy   ±0.2 ℃
  Withstand voltage range   0... 3bar

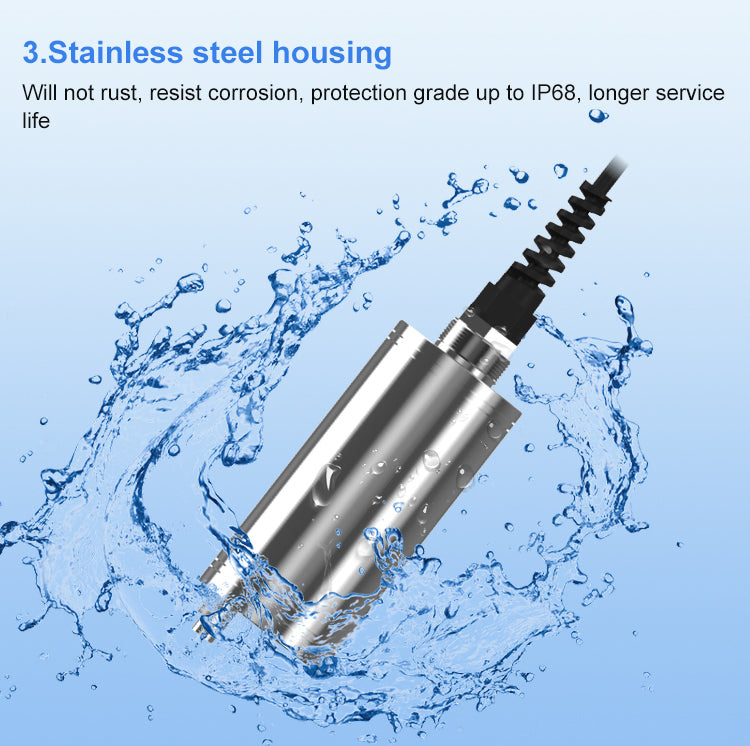

  Shell material   316 stainless steel
  Power   ≤10W

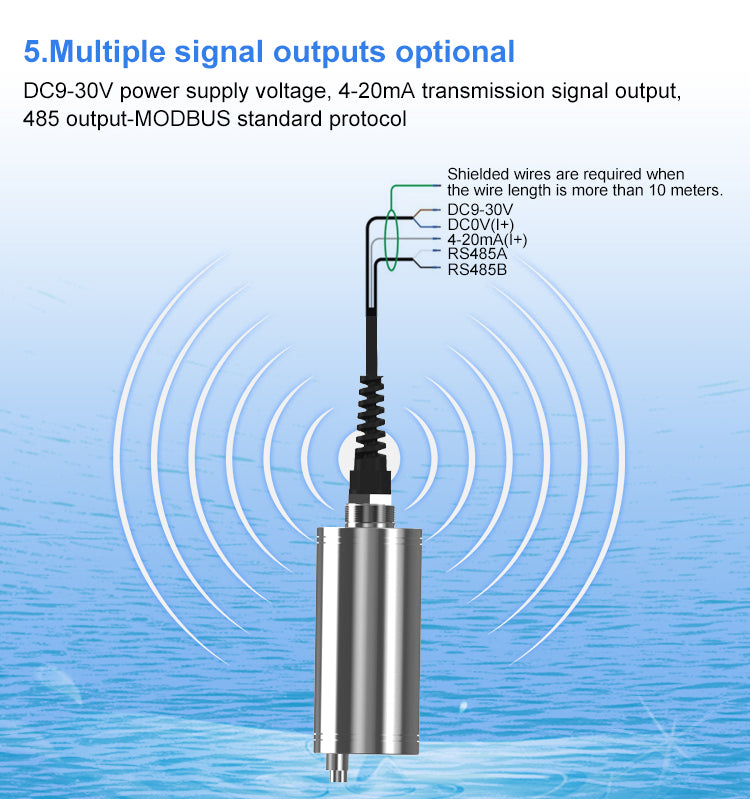

  Current signal output  4-20mA and RS485
  Current accuracy   1%FS
  Output load   Less than 750 Ω
  Data communication   4-20mA and RS485 (MODBUS-RTU)
  Working power   9~30VDC(12VDCrecommended)
  Working humidity   Relative humidity<90%

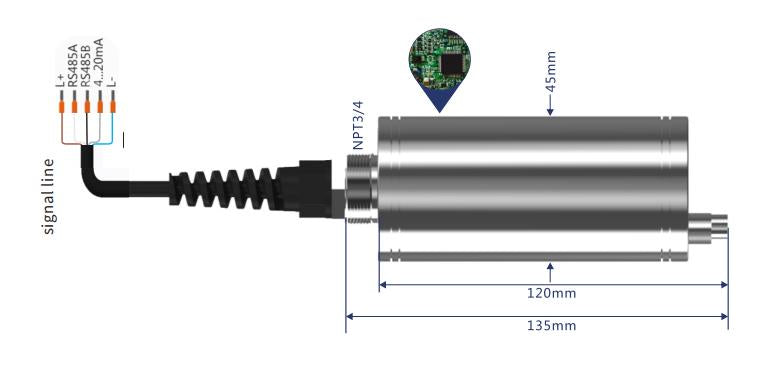

  Process connection   G 3/4
  Electricalconnections   Direct leadwith 5 meter cable
  Protection class    IP68



User Manual
