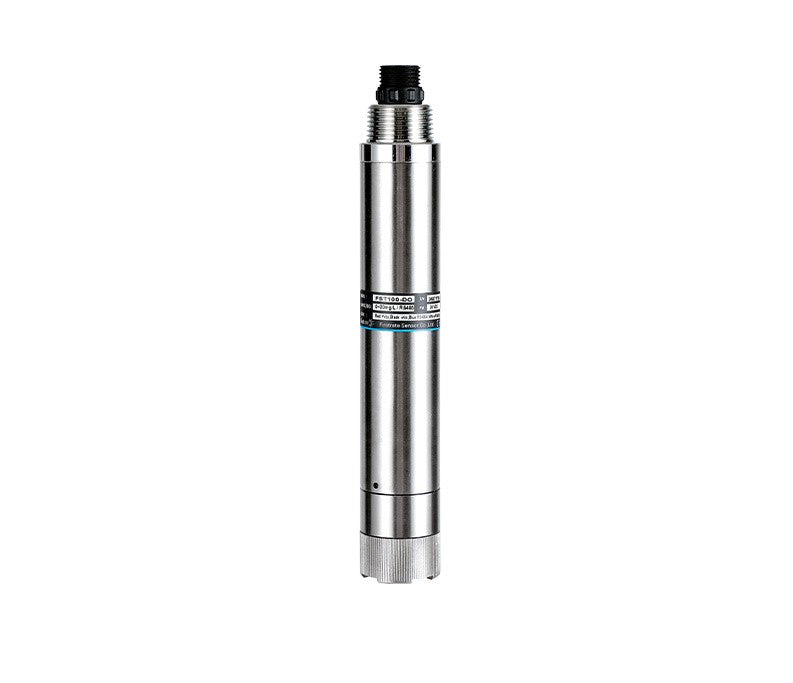

IQDO+ Industrial DO Dissolved Oxygen Sensor 4-20mA + Modbus RS485 5m Cable
Available:Accepting Orders
Wishlist
- Product SKU: IQDO+
- Category:IQFlow Sensors & Actuators
$599.00
IQDO+ Industrial DO Dissolved Oxygen Sensor 4-20mA + Modbus RS485 5m Cable
The IQDO+ water DO dissolved oxygen sensor can be used for environmental water quality monitoring, acid/alkali/salt solutions, chemical reaction processes, and industrial production processes, and can meet the requirements for online DO measurement in most industrial applications.
Technical Specifications:
|
model
|
IQDO+
|
|
Measuring range
|
0~20mg/L (0~200% saturation) |
|
resolution
|
0.01mg/L
|
|
Accuracy
|
±2%FS, ±0.2℃ |
|
Operating temperature
|
0~65℃
|
|
Pressure Range
|
＜0.6MPa
|
|
Temperature compensation
|
Automatic temperature compensation (NTC)
|
|
powered by
|
12~24VDC
|
|
Signal output
|

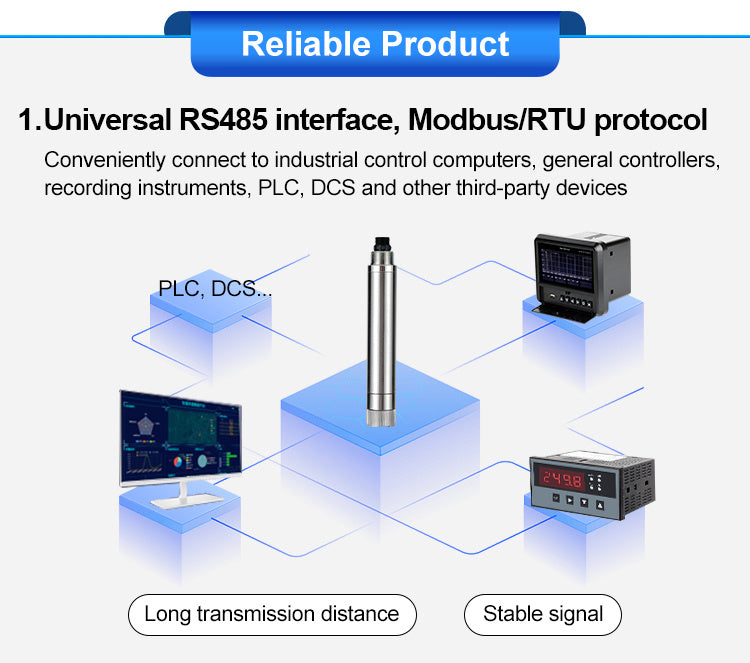

4-20mA and RS-485(Modbus/RTU)
|
|
shell material
|
Stainless steel
|
|
Installation method
|

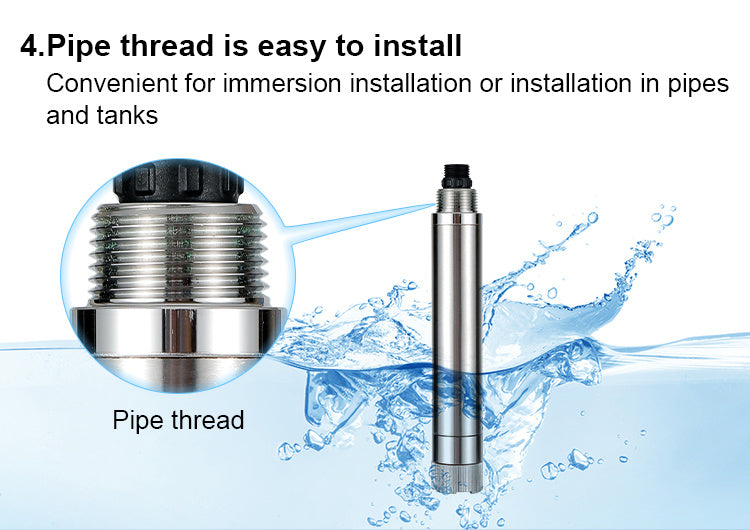

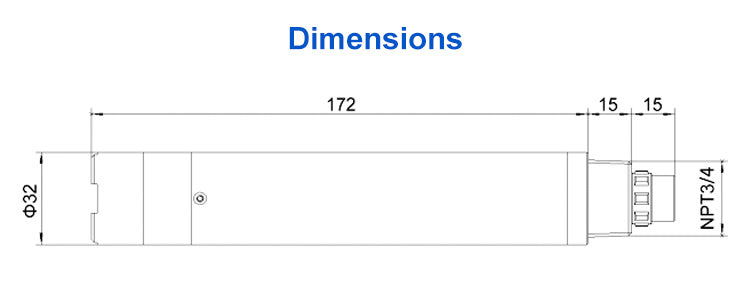

Submersible installation, 3/4" NPT pipe thread
|
|
Cable length
|
5 meters, other lengths can be customized
|
|
Calibration method
|
Two-point calibration/multi-point calibration
|
|
Power consumption
|
0.2W@12V
|
|
Protection level
|

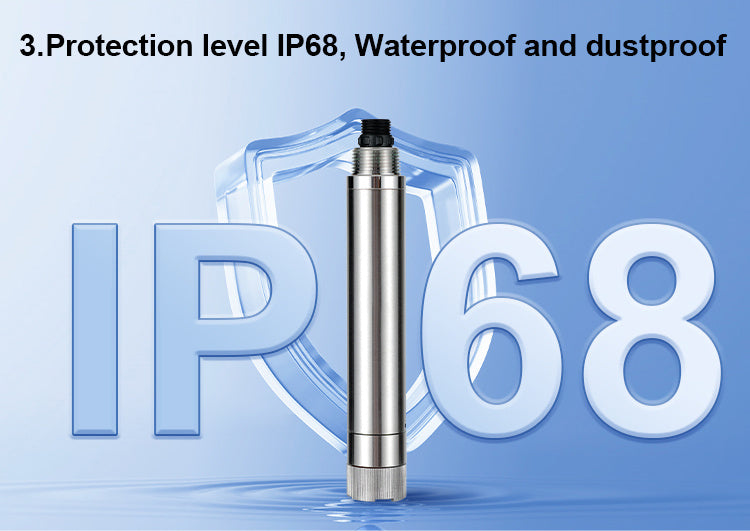

IP68 |
