IQDS Radar Tank Level Sensor 65m range, 10m cable, Modbus RS485 and 4-20mA
Available:Accepting Orders
Wishlist
- Product SKU: IQDS-R
- Category:IQFlow Sensors & Actuators
$499.00
IQDS Radar Tank Level Sensor 65m range, 10m cable, Modbus RS485 and 4-20mA

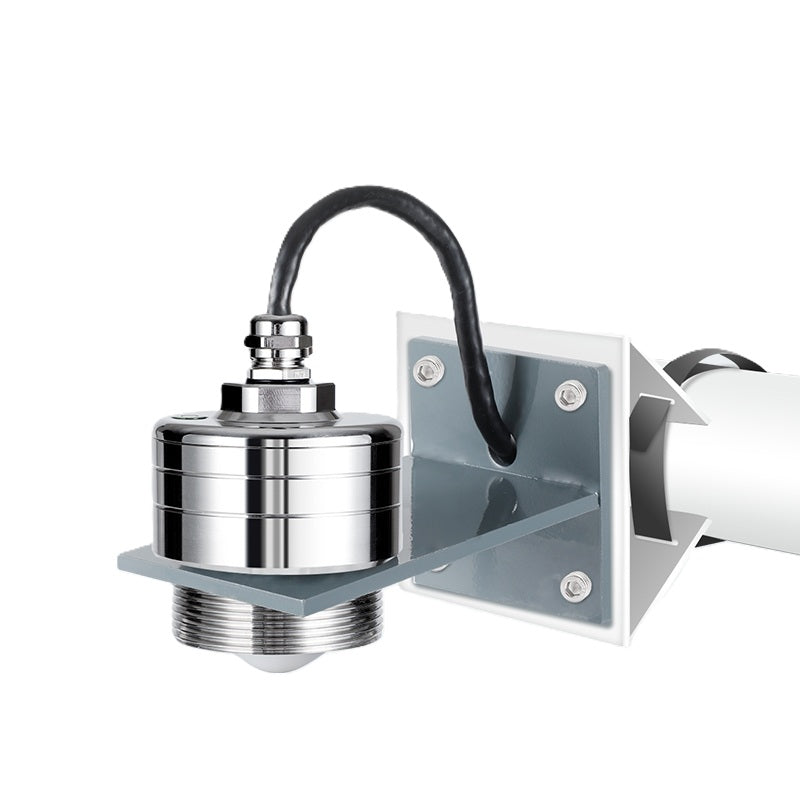

IQDS radar water level meter is a frequency modulated continuous wave (FMCW) radar sensor operating at 76-81GHz. The maximum range of the product can reach 65m, and the blind zone is 10cm. It has a higher operating frequency, larger bandwidth and higher measurement accuracy. The product provides a bracket fixing method, eliminating the need for on-site fabrication and making installation quick and easy.
Technical Parameters:
| Range |
0.2 m ~ 65m |
| Measurement accuracy |
±2mm |
| Beam angle | 6° |
| Voltage |
9~28 VDC (RS485)
|
| Working Temperature |
-30~75℃ |
| Material | Stainless steel/PP |
| Cable |
0.5mm², 10m length |

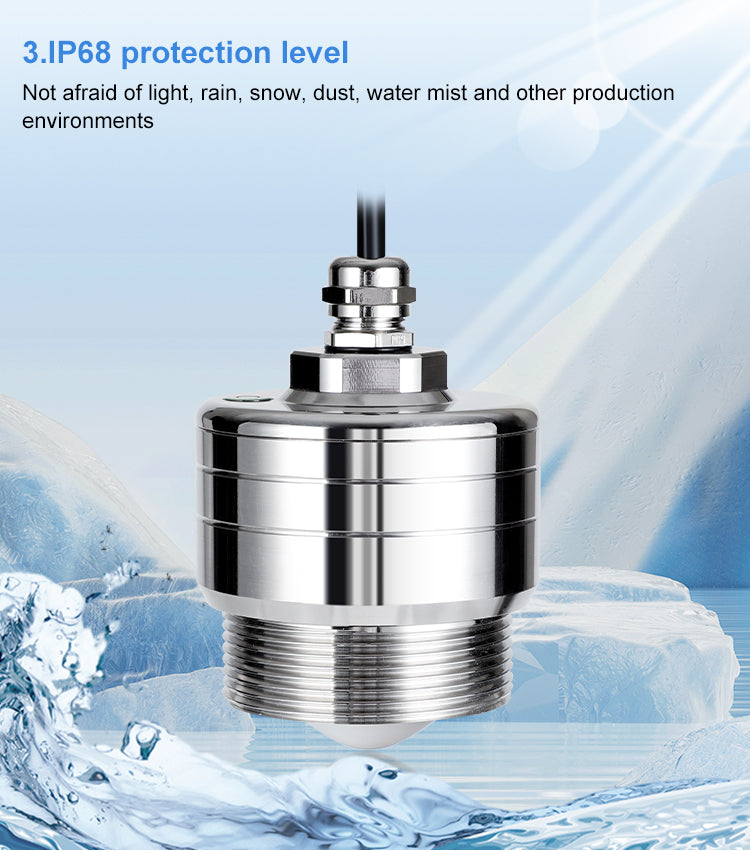

| IP Level |
IP68 |
| Cable entry | PG9 |
